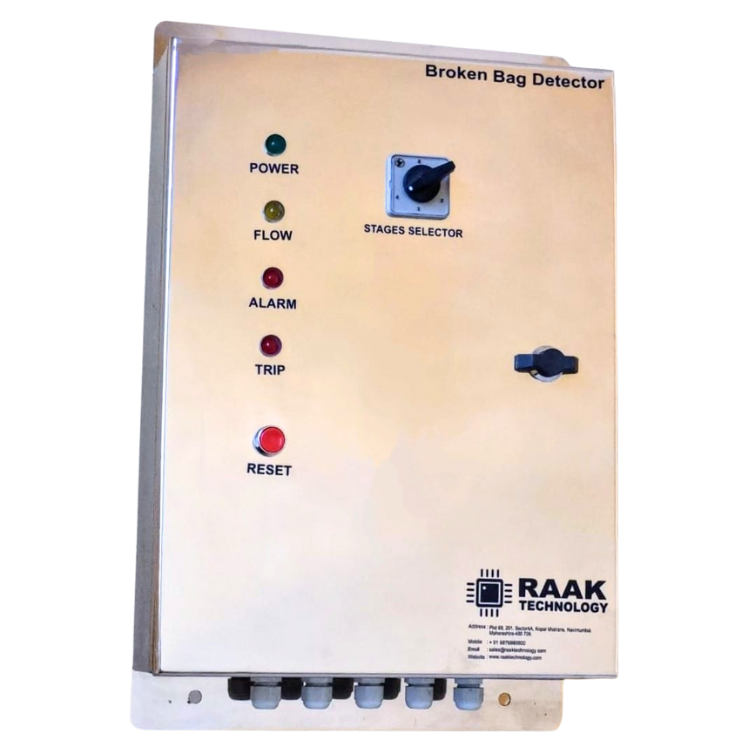

A triboelectric-based broken bag detector is a highly sensitive and reliable tool used in industrial dust collection systems to detect filter failures. By leveraging the triboelectric effect, the detector provides real-time monitoring of dust particle leakage, ensuring system efficiency and compliance with environmental regulations.

Working Principle:

1. Triboelectric Effect and Dust Generation:

Dust particles generate an electrical charge when they collide with each other or with the walls of a duct or filter. This phenomenon, known as the triboelectric effect, forms the foundation of the detector's functionality.

2. Sensor Placement:

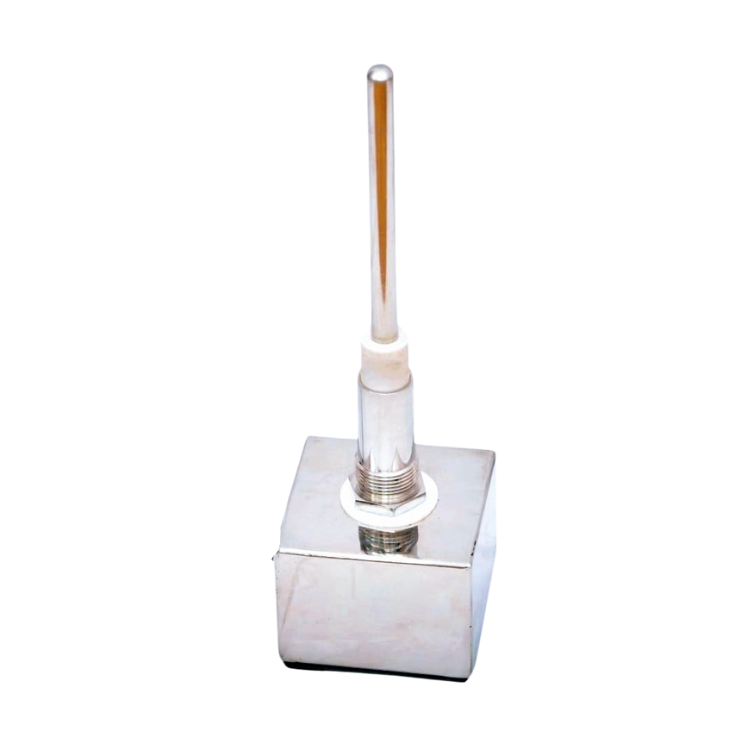

A triboelectric probe is strategically installed downstream of the filter system, typically on the clean air side. This placement ensures that only escaped particles are monitored, indicating potential filter damage.

3. Leak Detection:

When a filter bag is intact, minimal or no charged particles pass through to the clean air side.
If a bag is broken or damaged, charged particles escape and pass near the sensor. This generates an electrical signal proportional to the quantity and intensity of the particle leakage.

4. Signal Processing and Output:

The raw electrical signals from the probe are weak and are amplified for better resolution.
Noise is filtered out, and the processed signal is analyzed against a preset threshold.

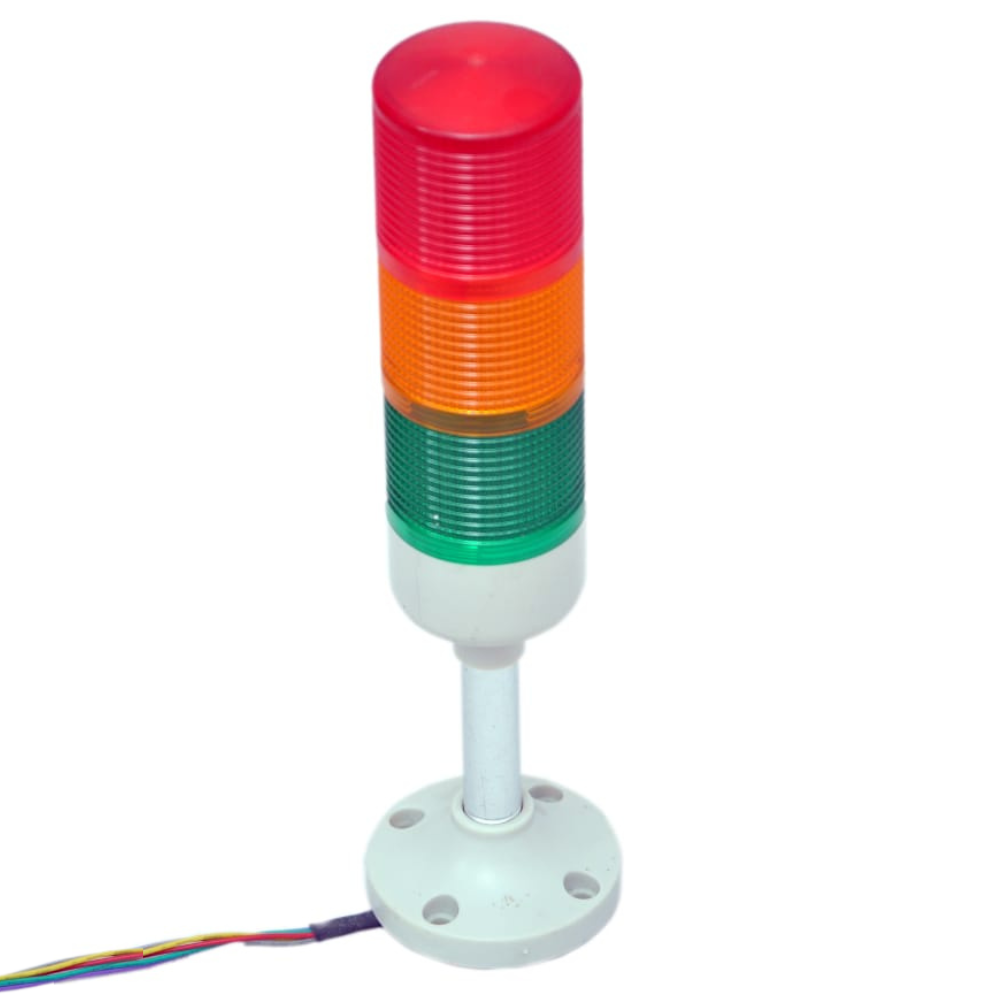

An output signal is generated, triggering an alarm or automated control actions in case of abnormal leakage.

5. Actionable Feedback:

Maintenance teams are alerted to inspect and replace the broken bag.
System data can be logged for compliance reports or trend analysis.

Advantages of Triboelectric-Based Broken Bag Detectors

High Sensitivity:

Capable of detecting even minute quantities of leaking dust.

Real-Time Monitoring:

Continuous monitoring enables immediate corrective action.

Non-Intrusive:

Sensors can be installed without disrupting the airflow or process.

Cost-Effective Maintenance:

Detecting issues early minimizes downtime and repair costs.

Compliance Assurance:

Ensures adherence to strict environmental and safety standards.

Common Applications:

1. Cement Industry

Monitoring dust collection systems in kilns and grinders to prevent air pollution and ensure worker safety.

2. Pharmaceutical and Food Industries

Preventing contamination of clean zones by detecting filter failures in air purification systems.

3. Mining and Quarrying

Ensuring environmental compliance by detecting leaks in dust filtration systems.

4. Power Plants

Monitoring baghouses in coal-fired power plants to detect emissions of fine particulate matter.

5. Chemical and Petrochemical Plants

Identifying potential leaks in hazardous material filtration systems.

How It Works in an Industrial Setup

1. Setup and Calibration

The detector is calibrated for specific dust types and environmental conditions to ensure accuracy.

2. Integration with Control Systems

Outputs from the detector are integrated into the plant’s process control systems, enabling automated actions like halting operations or activating cleaning mechanisms.

3. Regulatory Compliance

The detector ensures that dust emissions remain within permissible limits, helping industries avoid fines and penalties.

Key Features to Look for in a Broken Bag Detector

Adjustable sensitivity and alarm thresholds.

Compatibility with various dust collection systems.

Robust design to withstand harsh industrial environments.

Easy maintenance and calibration.

Digital or analog output options for seamless integration.

Why Choose Triboelectric Technology?

Unlike optical or pressure-based systems, triboelectric sensors are not affected by light conditions, pressure changes, or airflow rates. This makes them ideal for harsh and variable industrial environments where reliability and accuracy are critical.
For more information, system integration advice, or to purchase a triboelectric-based broken bag detector, contact us today!

---

Enhance your process efficiency, safeguard your equipment, and comply with environmental regulations with cutting-edge triboelectric technology.
