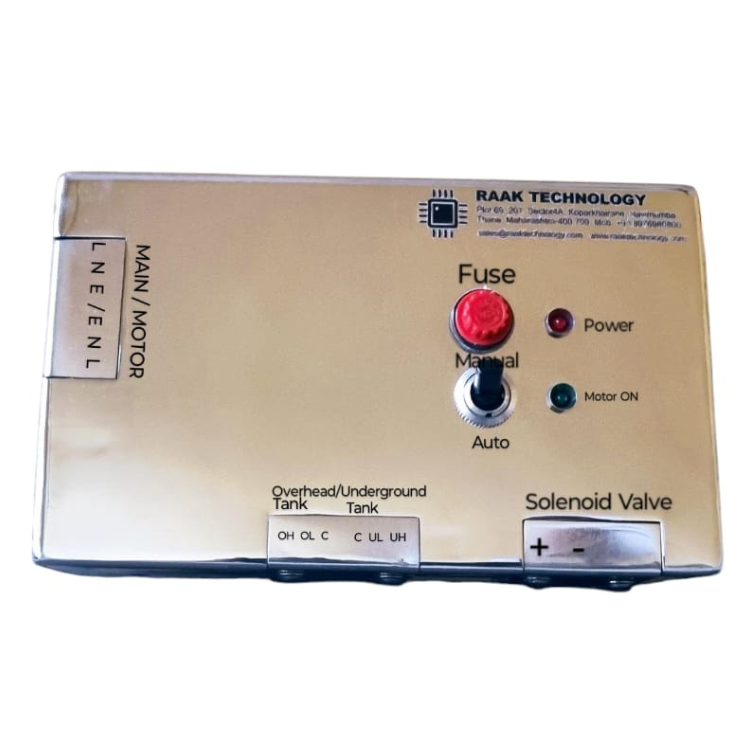

A conductive level controller is a device designed to monitor and control the level of conductive liquids in a tank, vessel, or pipeline. It operates by using the electrical conductivity of liquids to detect and regulate levels. These controllers are ideal for applications where the liquid's conductivity is sufficient for detection (typically >10 µS/cm).

Working Principle:

The conductive level controller uses electrodes (probes) immersed in the liquid.

When the liquid comes into contact with the electrodes, it completes an electrical circuit.

The controller detects the change in conductivity and triggers a relay to perform the desired action, such as opening/closing a valve, starting/stopping a pump, or activating an alarm.

Applications of Conductive Level Controllers

1. Water and Wastewater Management

Tank Level Control: Monitors and controls water levels in storage tanks, reservoirs, or basins.
Pump Protection: Prevents dry running of pumps by detecting low water levels.
Sewage Treatment Plants: Manages wastewater levels in treatment tanks.

2. Food and Beverage Industry

Process Tanks: Maintains specific levels in mixing or fermentation tanks.
Hygienic Applications: Suitable for CIP (Clean-in-Place) systems where stainless steel probes are used.

3. Chemical and Pharmaceutical Industry

Reactor Vessels: Controls levels of conductive chemicals or solutions.
Electrolytic Processes: Monitors electrolyte levels in plating or refining operations.

4. Boiler and Cooling Systems

Boiler Water Levels: Ensures proper water levels to avoid overheating or dry firing.
Cooling Towers: Controls water levels in cooling systems to maintain efficiency.

5. Power Plants

Condensate Tanks: Monitors water levels in condensate storage systems.
Feedwater Systems: Ensures precise control of feedwater levels.

6. Industrial Cleaning Systems

CIP and SIP Systems: Manages levels of cleaning agents or sterilization liquids.

Purpose of Conductive Level Controllers :

1. Safety:

Prevent overflow or underflow conditions.
Protect pumps and other equipment from damage due to dry running or cavitation.

2. Efficiency:

Ensure optimal use of liquids in processes.
Reduce manual intervention and enhance process automation.

3. Cost Savings:

Minimize waste and energy consumption.
Reduce downtime caused by equipment failure or process interruptions.

4. Compliance:

Meet industrial safety standards and environmental regulations.

Advantages of Triboelectric-Based Solid Flow Monitors

1. High Sensitivity:

Can detect even small variations in material flow.

2. Low Maintenance:

moving parts, reducing wear and tear.

3. Robust and Durable:

effectively in harsh industrial environments with dust, vibration, or temperature fluctuations.

4. Real-Time Feedback:

Enables immediate corrective actions for process interruptions.

5. Cost-Effective:

Provides accurate flow measurements without requiring expensive, complex equipment.

Industrial Uses

Advantages:

Reliable and Accurate: Ideal for detecting specific levels in conductive liquids.
Cost-Effective: Simple design and low maintenance.
Versatile: Suitable for a wide range of industries and applications.
Customizable Probes: Electrodes can be tailored for specific tank sizes or operating conditions.

Limitations:

Not suitable for non-conductive liquids like oils, hydrocarbons, or distilled water.
Electrodes may require regular cleaning in environments with scaling or fouling.

Types of Conductive Level Controllers

1. Single-Point Level Controllers:

Detects one specific level (e.g., high-level alarm).

2. Multi-Point Level Controllers:

Detects multiple levels (e.g., low, medium, high) using multiple probes.

Installation and Maintenance

1. Installation:

Mount probes at the desired level(s) in the tank.

Ensure proper electrical connections and grounding.

Use corrosion-resistant probes for aggressive liquids.

2. Maintenance:

Periodically clean probes to remove scaling or deposits.

Inspect wiring and connections for wear or corrosion.

Test the system regularly to ensure reliability.

Integration with Control Systems

PLC/SCADA Integration:

Conductive level controllers can be connected to industrial automation systems for real-time monitoring and control.

Alarms and Notifications:

Can trigger alarms or notifications in case of abnormal levels.

---

By leveraging the simplicity and reliability of conductive level controllers, industries can achieve better process control, safety, and efficiency, especially for managing conductive liquids.
